November 7, 2023 •Reid Geiler
In the home heating and cooling world, ductless systems have been gaining popularity for their energy-efficient and versatile nature. These systems, also known as ductless mini-split systems, offer a cost-effective way to maintain a comfortable indoor environment without traditional ductwork. Energy Star rebates are available when installing a new energy-efficient ductless system.
What is Ductless Heating and Cooling?
Ductless heating and cooling systems have two main components: indoor air-handling and outdoor compressor/condenser units. The indoor unit is typically mounted on the wall or ceiling, and it's connected to the outdoor unit via a small conduit that houses the refrigerant lines, power cables, and a condensate drain.
Unlike traditional central HVAC systems, which rely on ducts to distribute air throughout the home, ductless systems deliver conditioned air directly into specific zones or rooms.
Installation Principles
Installing a ductless system is relatively straightforward and can be done in hours. Here's an overview of the installation process:
- Placement of Indoor Units: A certified HVAC technician will assess your home to determine the optimal locations for the indoor units. These units are compact and inconspicuous, making them suitable for various settings.
- Mounting the Indoor Units: The indoor units are mounted on the chosen walls or ceilings, and the technician drills a small hole to connect the conduit to the outdoor unit.
- Connecting the Conduit: The conduit is routed through the drilled hole, connecting the indoor and outdoor units. This conduit contains the refrigerant lines, power cables, and a drain line.
- Installing the Outdoor Unit: The outdoor unit, often placed on a concrete pad or mounted on brackets, is connected to the indoor units via the conduit.
- Electrical Connection: The system is then connected to the electrical supply, and the refrigerant lines are charged with refrigerant.
- Final Testing: After installation, the technician performs a thorough system check to ensure everything functions correctly. They may adjust airflow and temperature settings to optimize performance.
Operating Principles
Ductless heating and cooling systems work on the same basic principles as traditional air conditioners and heat pumps. Here's how they operate:
- Cooling Mode: In cooling mode, the indoor unit absorbs warm air from the room and passes it over evaporator coils filled with refrigerant. The refrigerant absorbs the heat, turning it into a gas, and the cooled air is then blown back into the room. The hot refrigerant gas is pumped to the outdoor unit, releasing the heat and becoming a liquid again.
- Heating Mode: The process is reversed in heating mode. The outdoor unit absorbs heat from the outside air and releases it inside. This heat exchange allows the indoor unit to deliver warm air.
- Zoned Comfort: One of the critical advantages of ductless systems is their ability to provide zoned comfort. Each indoor unit can be controlled independently, allowing different rooms or zones to have individual temperature settings. This not only increases comfort but also helps save energy.

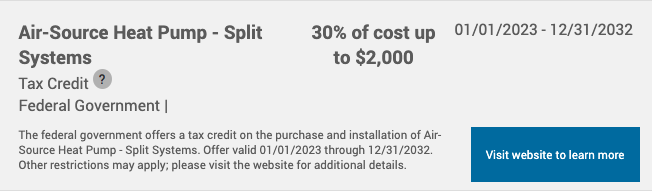

Energy Star Rebates
Ductless heating and cooling systems have gained Energy Star certification due to their remarkable energy efficiency. Energy Star is a program run by the U.S. Environmental Protection Agency (EPA) that promotes energy efficiency and helps consumers save on energy costs. When you install an Energy Star-certified ductless system, you may qualify for rebates and incentives, depending on your location and the specific system you choose.
To find out which rebates are available in your area, visit the Energy Star website or consult your local utility company. These incentives make upgrading to a ductless system an environmentally friendly and financially smart choice.
Ductless heating and cooling systems offer an energy-efficient, versatile, and cost-effective solution for home comfort. Their straightforward installation, zoned control, and potential for Energy Star rebates make them a compelling choice for homeowners looking to upgrade their HVAC systems while reducing their energy consumption. Consider going ductless if you want a more efficient, flexible heating and cooling solution.
